Feature：
1.Save time: electric heating tube uses sectional switch for heating control, it needs about 8 minutes to boil cold water to steam , which can save 4 hours per day.
2.Save human power : Full automatic control, high security, automatic water supply, simple operation, with alarm system and other equipment .
3.Save space: small size, it is suitable for city, high-rise and urban areas.
4.Save electric: the internal structure is special, high thermal efficiency , steam is dry without water.
5.Water tube internal furnace is made of special seamless steel tube, it is sturdy and durable, long life, high pressure resistance.
6.This machine has double sealed glass fiber insulation device, which can prevent heat loss, save fuel and achieve the highest moisturizing effect.
7.The installation is simple, no need large space, with the double devices of the high temperature and high pressure safety valve, which is safe and reliable.
8.There are two gears for 18KW/24KW/36KW/48KW steam boilers, that means then you can choose 9KW or 18KW when using 18KW boiler, and you can choose 18KW or 36KW when using 36KW boiler, but the others boilers have one gear.
Usage:
Widely used in the garment, food, chemical industry, scientific research units, laundry room, hotel, etc.

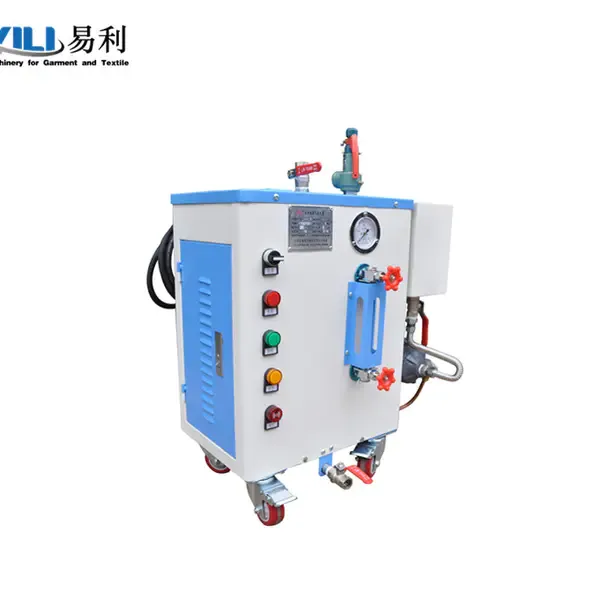

![Electric Steam Boiler]()
1.Save time: electric heating tube uses sectional switch for heating control, it needs about 8 minutes to boil cold water to steam , which can save 4 hours per day.
2.Save human power : Full automatic control, high security, automatic water supply, simple operation, with alarm system and other equipment .
3.Save space: small size, it is suitable for city, high-rise and urban areas.
4.Save electric: the internal structure is special, high thermal efficiency , steam is dry without water.
5.Water tube internal furnace is made of special seamless steel tube, it is sturdy and durable, long life, high pressure resistance.
6.This machine has double sealed glass fiber insulation device, which can prevent heat loss, save fuel and achieve the highest moisturizing effect.
7.The installation is simple, no need large space, with the double devices of the high temperature and high pressure safety valve, which is safe and reliable.
8.There are two gears for 18KW/24KW/36KW/48KW steam boilers, that means then you can choose 9KW or 18KW when using 18KW boiler, and you can choose 18KW or 36KW when using 36KW boiler, but the others boilers have one gear.
Usage:
Widely used in the garment, food, chemical industry, scientific research units, laundry room, hotel, etc.
| Technical specification | |||||||||||||||
| Model | YL-3KW | YL-6KW | YL-9KW | YL-12KW | YL-18KW | YL-24KW | YL-36KW | YL-48KW | YL-72KW | YL-108KW | |||||
| Heating Pipe Power | 3kw | 6kw | 9kw | 12kw | 18kw | 24kw | 36kw | 48kw | 72kw | 108kw | |||||
| Water pump Power | 0.8kw | 1.2kw | |||||||||||||
| Voltage | 1PH AC 220V/50Hz 3PH AC 380V/50Hz | 3PH AC 380V/50Hz | |||||||||||||
| Rated evaporation capacity | 4kg/h | 8kg/h | 12kg/h | 16kg/h | 25kg/h | 32kg/h | 50kg/h | 66kg/h | 100kg/h | 150kg/h | |||||
| Steam pressure | 0.4Mpa | 0.7Mpa | |||||||||||||
| Steam temperature | 151℃ | 151℃ | 151℃ | 151℃ | 151℃ | 151℃ | 170℃ | 170℃ | 170℃ | 170℃ | |||||
| Furnace Water capacity | 16L | 16L | 24L | 24L | 29L | 29L | 24L | 24L | 24L | 24L | |||||
| Water inflow caliber | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | |||||
| Steam outlet caliber | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | |||||
| Drain valve caliber | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | |||||
| Safety valve caliber | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | |||||
| Machine size | 600*440*880mm | 720*500*980mm | 800*520*1080mm | 800*570*1100mm | 850*680*1230mm | ||||||||||
