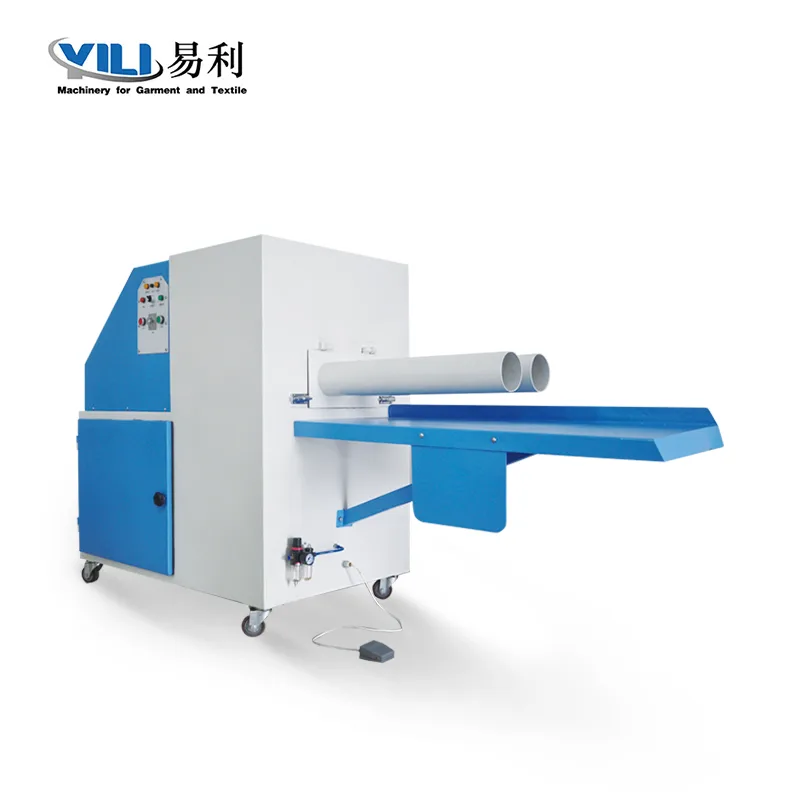

YL 138 Trousers Turn Over Machine

The trouser reverse machine is equipped with a silent high- speed vacuum pump, which has high operating efficiency and a comfortable operating environment. Use with four-step fan , improves working efficiency and reduces power consumption.

Noise: <85db
Voltage: 3PH 380V+5% 50Hz
Input air pressure: 0.3-0.7mpa
Motor Power &Speed: 3KW 2800r/min
Negative Suction Pressure: -1000mm

    oops...!

    no product data.

    Go to homepage

    Product feature

    YL 138 Trousers Turn Over Machine 6
    ● Efficient production
    It can quickly reverse all kinds of pants. Compared with manual turning, it greatly improves work efficiency and output and reduces labor intensity.
    YL 138 Trousers Turn Over Machine 7
    ● Easy operation
    With a high degree of automation, worker only need to place the pants in the designated position, and the machine can complete the turning operation. No complicated manual skills are required, which reduces the skill requirements for operators.
    1835955 拷贝 (2)
    ● Diverse functions
    It can sucking out the floating thread, dirt, debris, etc. which floating on the pants.
    01 (1) - 副本
    ● Advantages
    When the metal is detected, the machine will alarm, and the conveyor belt will stop going forward and return back.
    01 (1) - 副本
    ● increase efficiency
    Use with four-step fan, improves working efficiency and reduces power consumption.

    YL 138 Trousers Turn Over Machine 11 Application range

    1. Detect broken needles and ferromagnetic fragments in various types of sewing products ;

    2. Detection of ferromagnetic impurities contained in foods and medicines;

    3. Detection of iron filings and various alloy fragments in chemical raw materials, rubber products and paper products;

    4. Detecting iron impurities contained in non-ferrous materials such as copper, aluminum and zinc;

    Hardware buttons, zippers, bead chains and other clothing, handbags, metal accessories should be customized according to the actual situation.

    Specification

    Model YL-9000QSY Air consumption 0.5cube/hour
    Voltage AC 3PH 380V 50HZ Steam pressure 0.4-0.7Mpa
    Ironing efficiency 800-1000pcs/hour Steam consumption 200kg/hour
    Rated Power 26Kw Machine dimension 10600X1520X2350MM
    Air pressure 0.6Mpa

    TECHNICAL SPECIFICATION

    Model

    Voltage

    Power

    Detection
    menthods

    Alarm mode

    Detection
    sensitivity

    Sensitivity
    adjustment

    Detect surface
    width

    Conveyor
    belt width

    Detect  surface
    height

    Transfer speed

    YL-630A

    1P AC220V-240V
    50-60Hz

    600W

    Magnetic
    induction

    The electronic buzzer sounds, the light indicates, and the conveyor belt return.

    Φ 1.0mm Fe ball Φ 1.0mm

    Level 1-10

    600mm

    ~57/58 cm

    100mm

    32m/min(50Hz)
    40m/min(60Hz)

    YL-630AS

    900W

    Φ 0.8mm Fe ball Φ 0.8mm

    100mm

    1 (29)

    Model: YL-128

    Reversing Tops Machine

    Features: The angle of the suction tube is adjustable,

    can be used in different size tops.

    Suitable for: shirts, casual wear and etc.

    Model: YL-138

    Reversing Trousers Machine

    Suitable for: Trousers of different fabric.

    2 (20)
    3 (16)

    Model: YL-148

    Reversing Pillowcase Machine

    Suitable for: Pillowcase.

    Model: YL-630A

    Single head needle detector

    One layer ten group of independent probe, good sensitivity,

    good stability.

    4 (9)
    5 (4)

    Model: YL-630AS

    Double head needle detector

    Two layer ten group of independent probe,

    higher sensitivity, better stability.
