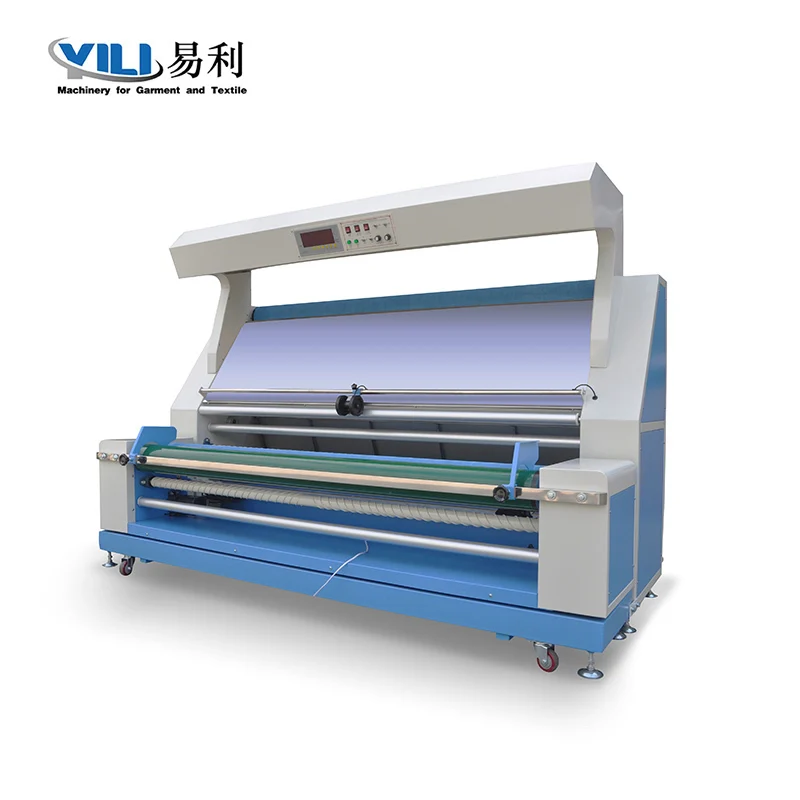

YL-2100C-JS-ED2 Knitted & Woven Multi-function Fabric Inspection Machine (Roll to Roll, Roll to Relaxing, Relaxing to Roll, Relaxing to Relaxing)

Hot selling model, multifunctional fabric inspection machine, suitable for knitted, woven and other fabrics, with functions such as fabric rolled, fabric folding, automatic edge alignment, spreading, and tension-free feeding fabric. It is a versatile machine and an ideal model for various types of apparel and fabric factories.

Model: YL-1800C-JS-ED2, YL-2100C-JS-ED2, YL-2400C-JS-ED2
Max. Fabric width: 1800mm (72inches), 2100mm (82inches), 2400mm (94inches)
Max. Fabric roll diameter: 400mm
Working speed: 1-30m/min
Total Power: 1.3Kw

    oops...!

    no product data.

    Go to homepage

    Product feature

    Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.

    7001962 拷贝 (3)
    ● Automatic Tension-free Fabric Feeding and Speed Synchronization
    Utilizing an electric eye in conjunction with a distinctive combination of mechanical and electrical devices (both the feeding and re-winding rollers are motor-controlled), this system ensures synchronous fabric feeding, conveying, and re-winding. This effectively prevents high elastic fabrics from being stretched or deformed.
    9299850 拷贝 (3)
    ● Fabric Edge Alignment Control during Re-rolling
    The infrared edge alignment system offers precise control with an error margin of only 5mm.
    1835955 拷贝 (2)
    ● Fabric Spreading System
    Featuring two sets of fabric spreading roller systems, it is capable of eliminating wrinkles in knitted fabrics.
    png100-t3-scale100 (1)
    ● Precise Length Measurement
    Fitted with a high-precision digital counter that allows seamless switching between meters and yards (default unit: meters), the counting error is within ±0.5%, and the precision reaches 0.01mm.
    15713696 拷贝 (2)
    ● Full-width Fabric Inspection
    Equipped with a fixed 55-degree angle inspection screen for comprehensive fabric examination.
    16464283 拷贝
    ● Optimal Visibility for Fabric Inspection
    The upper lampshade and lower light box are both outfitted with D65 LED lights (1600lux). Specifically, the upper lampshade has 4 light units, while the lower light box contains 8 light units.
    YL-2100C-JS-ED2 Knitted & Woven Multi-function Fabric Inspection Machine (Roll to Roll, Roll to Relaxing, Relaxing to Roll, Relaxing to Relaxing) 10
    ● User-friendly Operation with Re-inspection Support
    The winding main shaft can rotate both forward and backward, facilitating convenient fabric inspection. Additionally, it comes with a foot pedal for easy operation, enhancing the overall user experience.
    YL-2100C-JS-ED2 Knitted & Woven Multi-function Fabric Inspection Machine (Roll to Roll, Roll to Relaxing, Relaxing to Roll, Relaxing to Relaxing) 11
    ● Adjustable Tension and Speed
    Based on various fabric rolling requirements, it enables either tense or relaxed rolling through the tension adjustment switch. With an imported frequency converter, the inspection speed can be flexibly controlled.
    1835955 拷贝 (2)
    ● Versatile Fabric Input and Output Options
    Supports Roll to Roll, Roll to Relaxing, Relaxing to Roll, and Relaxing to Relaxing operations.

    YL-2100C-JS-ED2 Knitted & Woven Multi-function Fabric Inspection Machine (Roll to Roll, Roll to Relaxing, Relaxing to Roll, Relaxing to Relaxing) 13 Optional

    ● Weighing device.

    ● Fabric Roll End Cutter (Full width cutting at the end of processed roll, fast and accurate).

    Standard Configuration

    1 (25)
    01
    Electric eye is control feeding fabric without tension.
    2 (17)
    02
    Edge alignment function ensure rewinding fabric one edge is neat.
    3 (12)
    03
    Two sets of Spreading fabric roller driven by motor,spreading the knitted fabric wrinkle and open the curled edges .
    4 (5)
    04
    Equipped with high precision digital counter, which can exactly calculate the length of fabric.
    5 (3)
    05
    Equipped with counting display and control panel easy to operate.

    Specification

    Model YL-1800C-JS-ED2 YL-2100C-JS-ED2 YL-2400C-JS-ED2
    Max. Fabric width 1800mm (72inches) 2100mm (82inches) 2400mm (94inches)
    Max. Fabric roll diameter 400mm
    Working speed 1-30m/min
    Total Power 1.3Kw
    Voltage 1PH AC 220V 50Hz
    Machine dimension 2610x1550x1850mm 2810x1550x1850mm 3110x1550x1850mm
    Package dimension 2710x1650x2050mm 2910x1650x2050mm 3210x1650x2050mm
    Gross weight 730Kgs 760Kgs 790Kgs
    Optional Weighing device (W)            End cutter (LC)

    Operation diagram

    图片 1 (4)

    Optional Configuration

    图片 1 (3)

    01

    Fabric end cutter

    图片 2 (3)

    02

    Weighing device
