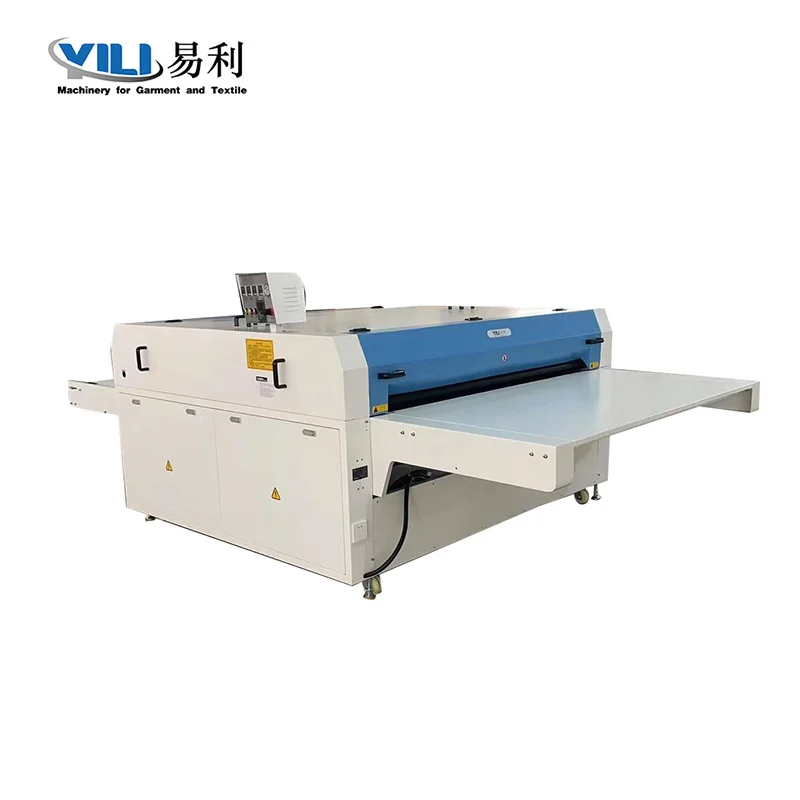

YILI Fusing machine Model: YL-900B YL-1200B YL-1600B YL-1800B

Yili B-type fusing machine adopts a 12 group heating plate design and 4 independent temperature control sensors, which can accurately control the temperature and reduce the color difference of the fabric. It is suitable for various clothing bonding processes.

Model: YL-900B, YL-1200B, YL-1600B, YL-1800B
Heating power: 24Kw, 30Kw, 42Kw, 48Kw
Heating plate quantity: 12PCS
Drive motor power: 40w
Voltage: AC 3Ph 380V 50Hz

    oops...!

    no product data.

    Go to homepage

    Product feature

    2103686 拷贝
    ● The upper and lower belts are equipped with automatic correction devices, which greatly improve the service life of the belt without deviating from rotation.
    4207273 拷贝
    ● Adopting imported brand temperature controllers, which can accurately control the temperature and reduce the occurrence of fabric color difference.
    14893868 拷贝
    ● Adopting customized thickened anti-static seamless belt from imported Teflon.
    15713696 拷贝
    ● Innovative body design reduces the impact of heat on electrical components, improving their durability and service life.
    1835955 拷贝 (2)
    ● Adopting a unique aluminum heating system design, stable and reliable bonding operations have been achieved.
    9299850 拷贝 (3)
    ● Adopting an automatic scraper design, it is easier to remove the cutting blade.
    7001962 拷贝 (3)
    ● Equipped with anti wrinkle rollers to handle various fabrics.
    YILI Fusing machine Model: YL-900B YL-1200B YL-1600B YL-1800B 13

    ● Adopting a large single roller single pressure structure, it can meet different levels of bonding requirements according to customer requirements.

    ● Adopting 12 sets of heating plate design to reduce the temperature difference range.

    ● Equipped with a mesh belt conveyor function and using an enlarged cooling fan for better cooling effect.


    YILI Fusing machine Model: YL-900B YL-1200B YL-1600B YL-1800B 14 Application

    This machine is suitable for medium to large factories and is suitable for bonding work in casual clothing, fashion, suits, shirts, and bonding processing.

    Product advantages

    YILI Fusing machine Model: YL-900B YL-1200B YL-1600B YL-1800B 15
    Automatic correction
    The upper and lower belts are equipped with automatic correction devices, which greatly improve the service life of the belt without deviating from rotation.
    YILI Fusing machine Model: YL-900B YL-1200B YL-1600B YL-1800B 16
    Imported brand thermostat
    Adopting imported brand temperature controllers, which can accurately control the temperature and reduce the occurrence of fabric color difference.
    YILI Fusing machine Model: YL-900B YL-1200B YL-1600B YL-1800B 17
    Imported conveyor belt
    Adopting customized thickened anti-static seamless belt from imported Teflon.
    YILI Fusing machine Model: YL-900B YL-1200B YL-1600B YL-1800B 18
    12 sets of heating plates
    Adopting 12 sets of heating plate design to reduce the temperature difference range.

    Specification

    Model YL-900B YL-1200B YL-1600B YL-1800B
    Heating power 24Kw 30Kw 42Kw 48Kw
    Heating plate quantity 12PCS
    Drive motor power 40w
    Voltage AC 3Ph 380V 50Hz
    Pressurization method Pneumatic Pressurization(Need use with air compressor)
    Air supply Min. Consumption 5~10L/H
    Fusing pressure 0-0.7Mpa
    Fusing temperature Room temperature-200℃
    Fusing width 900mm 1200mm 1600mm 1800mm
    Conveyor speed 1-10m/min
    Machine dimension 3920*1430*1400mm 3920*1730*1400mm 3920*2130*1400mm 3920*2330*1400mm
    Weight 720Kgs 920Kgs 1100Kgs 1250Kgs

    Optional Details

    png100-t3-scale100 (1)
    Optional:
    Extended belt feeding in the feeding area for convenient operation and continuous feeding to improve production efficiency (Model: YL-900B-L YL-1200B-L YL-1600B-L YL-1800B-L).
    1835955 拷贝 (2)
    Optional
    For whole roll fabric fusing, can use with fabric feeding and rewinding machine.
    01 (2) (4)
    01 (2) (4)
    01 (1) (3)
    01 (1) (3)
